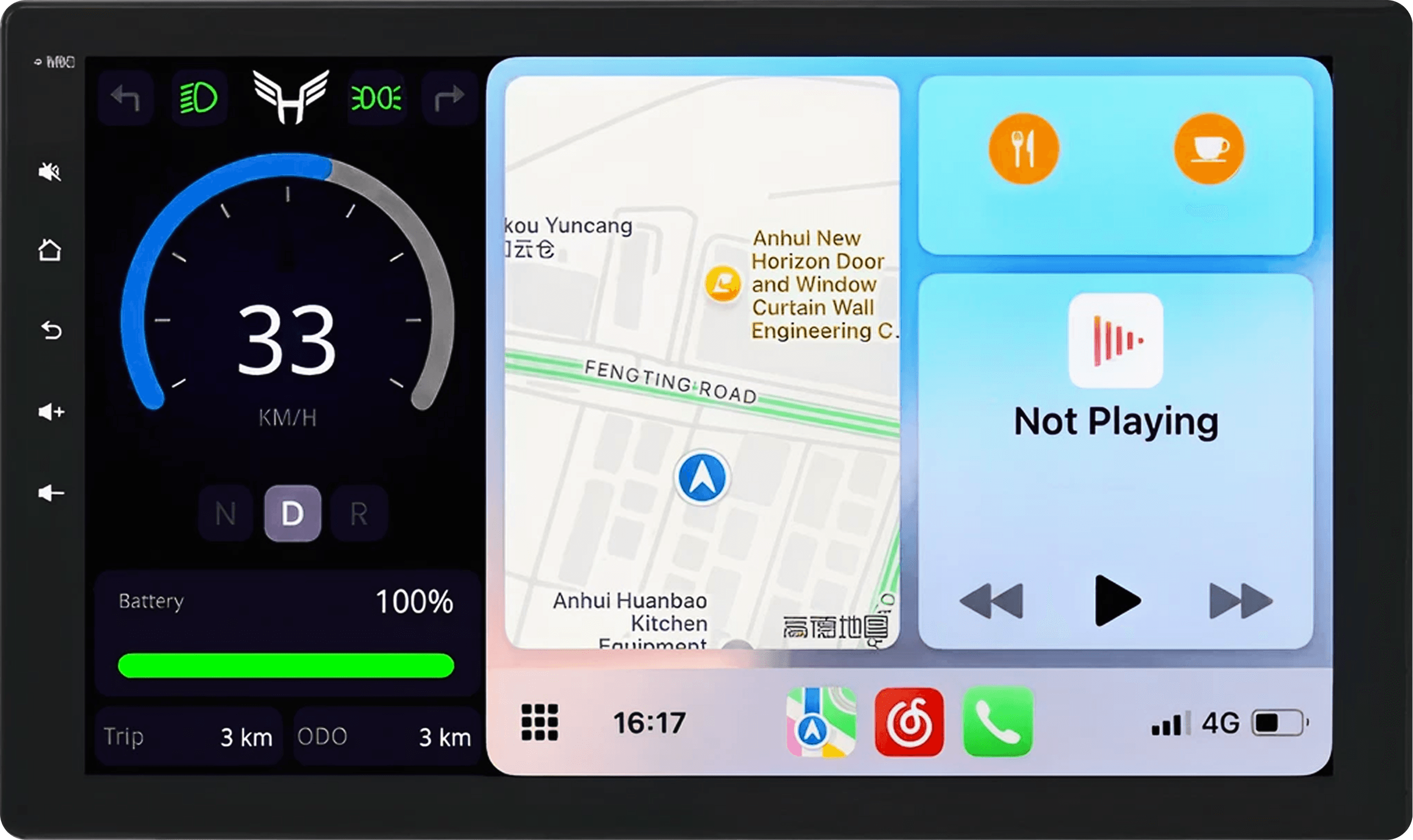

Connex Display is a 10.1-inch AI-powered smart touchscreen built for golf carts and low-speed vehicles. It is factory-installed in Honor LSV golf carts and available as an OEM-integrated solution for LSV and golf cart manufacturers.
98%
98%
2321
2321
ODI/MI
ODI/MI
96.8
96.8
TRIP/MI
TRIP/MI
CONNEX DISPLAY
CONNEX DISPLAY
Product Specification
Product Specification
Display Size : 10.1 inches
Display Resolution: 1024 x 600
CPU: Dual-core ARM CortexTM-A7 1.2GHz, 2Gb DDR3, 1Gb eMMc
Operating System: Connex Linux Operating System™
Connectivity: Wireless Apple CarPlay, Wireless Android Auto
Bluetooth: Dual BLE — Channel 1: CarPlay/Android Auto, Channel 2: Speakers + Hands-free
Audio: FM Radio (87.5–108.0 MHz), Bluetooth Audio, Hands-free Calling
Camera: Rear-view camera included — auto-activates on reverse
Dashboard: Real-time speed, gear position (N/D/R), battery %, trip & odometer
Supported Apps: Spotify, Google Maps, Waze, WhatsApp, and 20+ more via CarPlay/Android Auto
CAN Support: CAN bus enabled for vehicle data integration
Installation: Plug-and-play — no wiring overhaul required
White-label: Fully customisable: your logo, boot screen, colours; ships as your product
Theme: Dark and light mode
Units Deployed: 1,000+ LSVs powered, 20,000+ miles logged
Mic: Built In
Power Input: 9V-90V DC
Display Size
10.1 inches
Display Resolution
1024 x 600
CPU
Dual-core ARM CortexTM-A7 1.2GHz, 2Gb DDR3, 1Gb eMMc
Operating System
Connex Linux Operating System™
Connectivity
Wireless Apple CarPlay, Wireless Android Auto
Bluetooth
Dual BLE — Channel 1: CarPlay/Android Auto, Channel 2: Speakers + Hands-free
Audio
FM Radio (87.5–108.0 MHz), Bluetooth Audio, Hands-free Calling
Camera
Rear-view camera included — auto-activates on reverse
Dashboard
Real-time speed, gear position (N/D/R), battery %, trip & odometer
Supported Apps
Spotify, Google Maps, Waze, WhatsApp, and 20+ more via CarPlay/Android Auto
CAN Support
CAN bus enabled for vehicle data integration
Installation
Plug-and-play — no wiring overhaul required
White-label
Fully customisable: your logo, boot screen, colours; ships as your product
Theme
Dark and light mode
Units Deployed
1,000+ LSVs powered, 20,000+ miles logged
Mic
Built In
Power Input
9V-90V DC
WHAT YOU GET
WHAT YOU GET
What's in the box?
What's in the box?
FM antenna (2M length)
Mounting bracket and hardware
Overall extension cable (10cm length)
Rear-view camera with cable
Connex Display 10.1” touchscreen unit
OEM Branded Quick start guide/Manual
Wiring harness (plug-and-play)
Full set of volume knob
INTELLIGENT DISPLAY
INTELLIGENT DISPLAY
Display built to make your
vehicle intelligent
Display built to make your vehicle intelligent

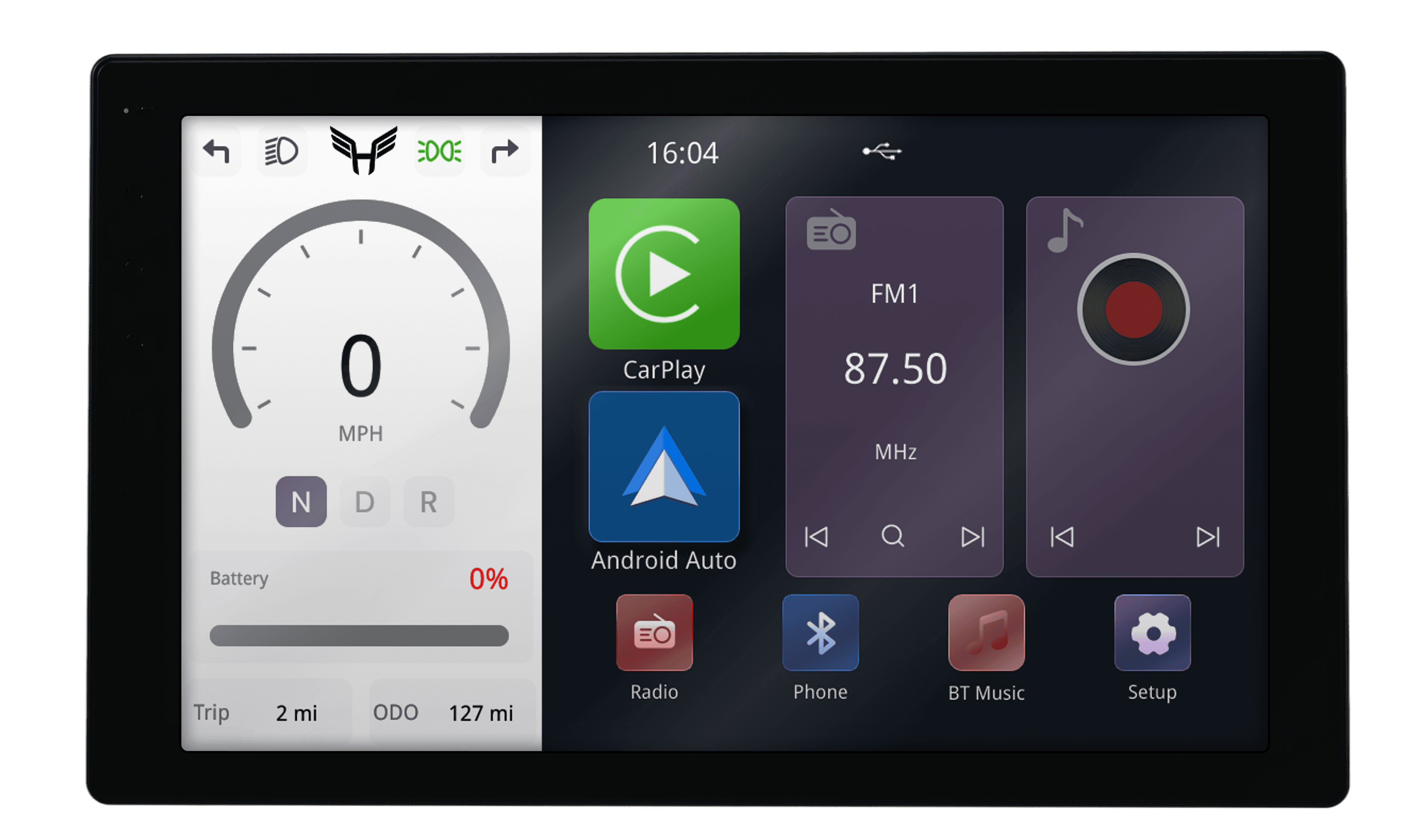

Real-Time
Real-Time Dashboard
Real-Time Dashboard
The real-time dashboard shows speed, gear position (N/D/R), battery percentage, trip distance, and odometer. The system supports CAN bus for vehicle data integration with compatible controllers and batteries.
The real-time dashboard shows speed, gear position (N/D/R), battery percentage, trip distance, and odometer. The system supports CAN bus for vehicle data integration with compatible controllers and batteries.
Device Recognition
Automatic Device Reconnection
Automatic Device Reconnection
Remembers your last paired phone and reconnects automatically when the cart starts again.
Remembers your last paired phone and reconnects automatically when the cart starts again.
DEVICE CONNECTED SUCCESSFULLY
DEVICE CONNECTED SUCCESSFULLY
PAIRING REMEMBERED
PAIRING REMEMBERED
DEVICE DETECTED
CONNECTING
DEVICE CONNECTED
Intelligent Display
Fully customizable displays for your golf carts and low-speed vehicles.
Fully customizable displays for your golf carts and low-speed vehicles.

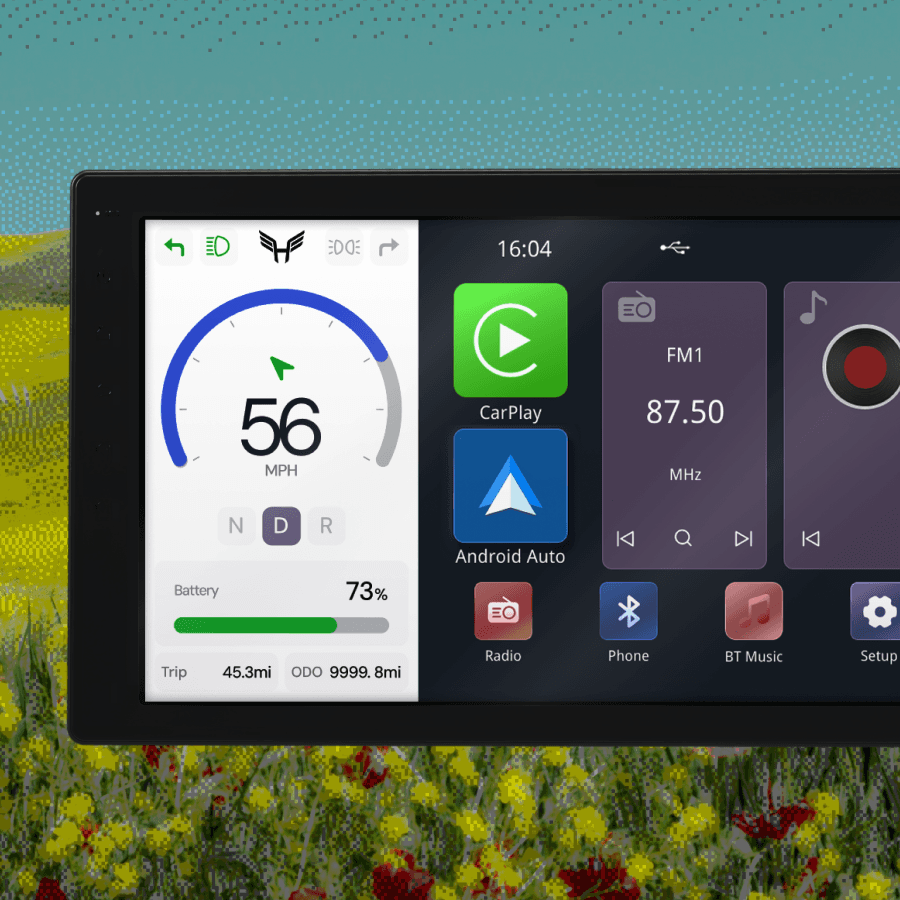

Running on the proprietary Connex Linux Operating System and fully white-label ready. OEM partners can fully customise the displays, so the display ships as their own branded product.
Running on the proprietary Connex Linux Operating System and fully white-label ready. OEM partners can fully customise the displays, so the display ships as their own branded product.
Customize functionality and features specific to your vehicle.
Ship displays with your own boot screen, logo, and colour scheme.
20K+ Miles With Display
Built Display That Are Powering Honor LSV Golf Carts
Built Display That Are Powering Honor LSV Golf Carts
Built custom displays for Honor LSVs that are currently powering 1,000+ LSVs with over 20,000 miles logged across the Honor LSV fleet.
Built custom displays for Honor LSVs that are currently powering 1,000+ LSVs with over 20,000 miles logged across the Honor LSV fleet.
[01]

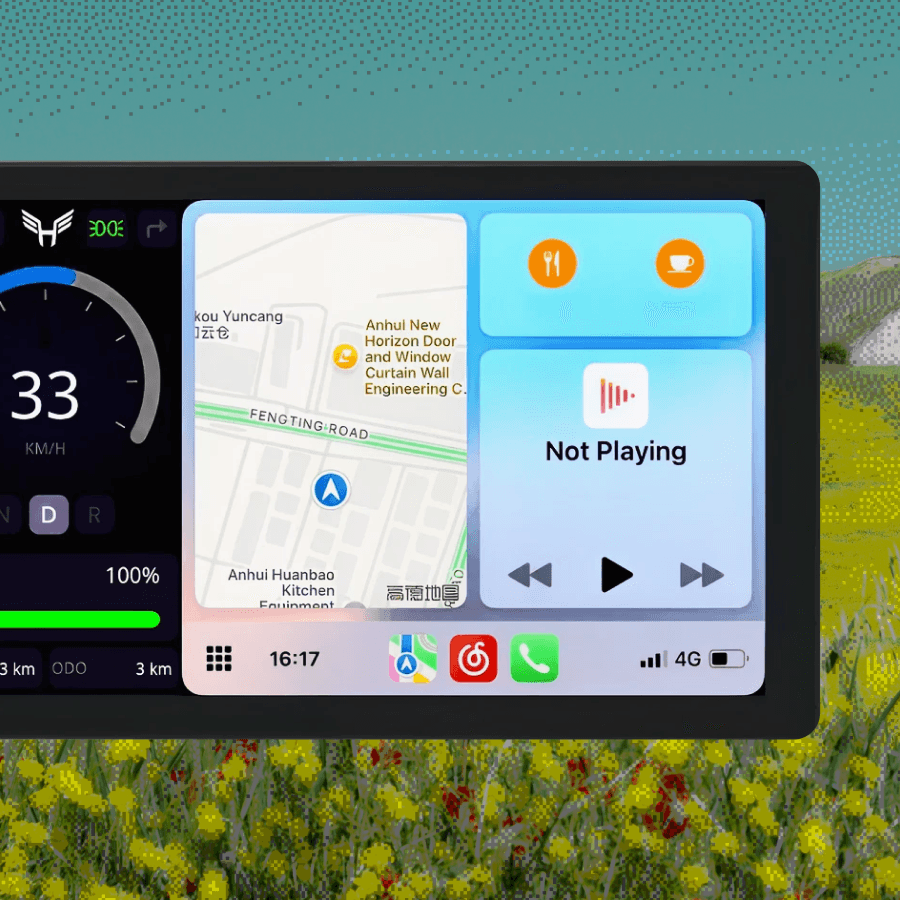

Dual BLE
Dual BLE

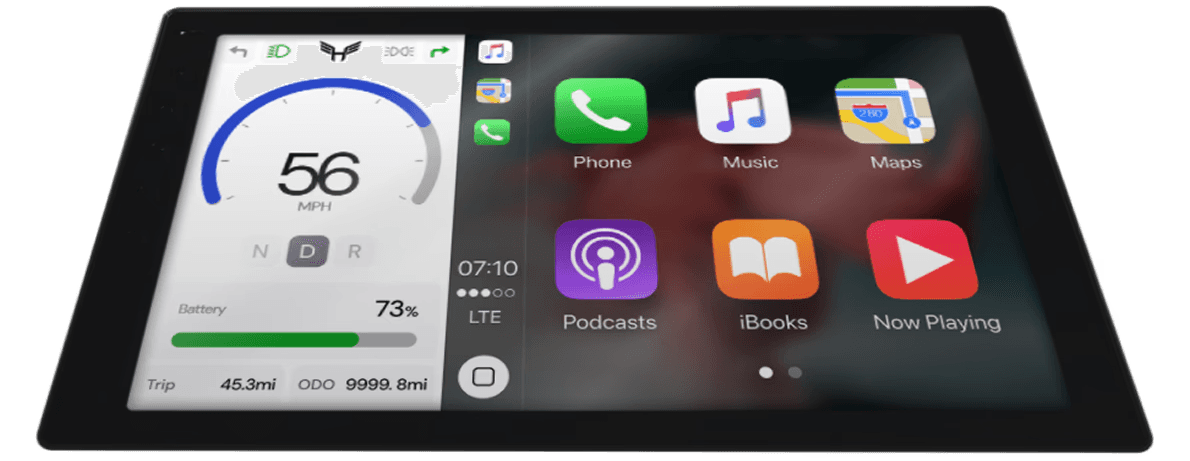

The display features wireless Apple CarPlay and Android Auto through a dedicated BLE connection — no cables needed. A second independent BLE channel is reserved for Bluetooth speakers, FM radio, and hands-free calling, so audio and CarPlay never compete for the same connection.
The display features wireless Apple CarPlay and Android Auto through a dedicated BLE connection — no cables needed. A second independent BLE channel is reserved for Bluetooth speakers, FM radio, and hands-free calling, so audio and CarPlay never compete for the same connection.
[02]

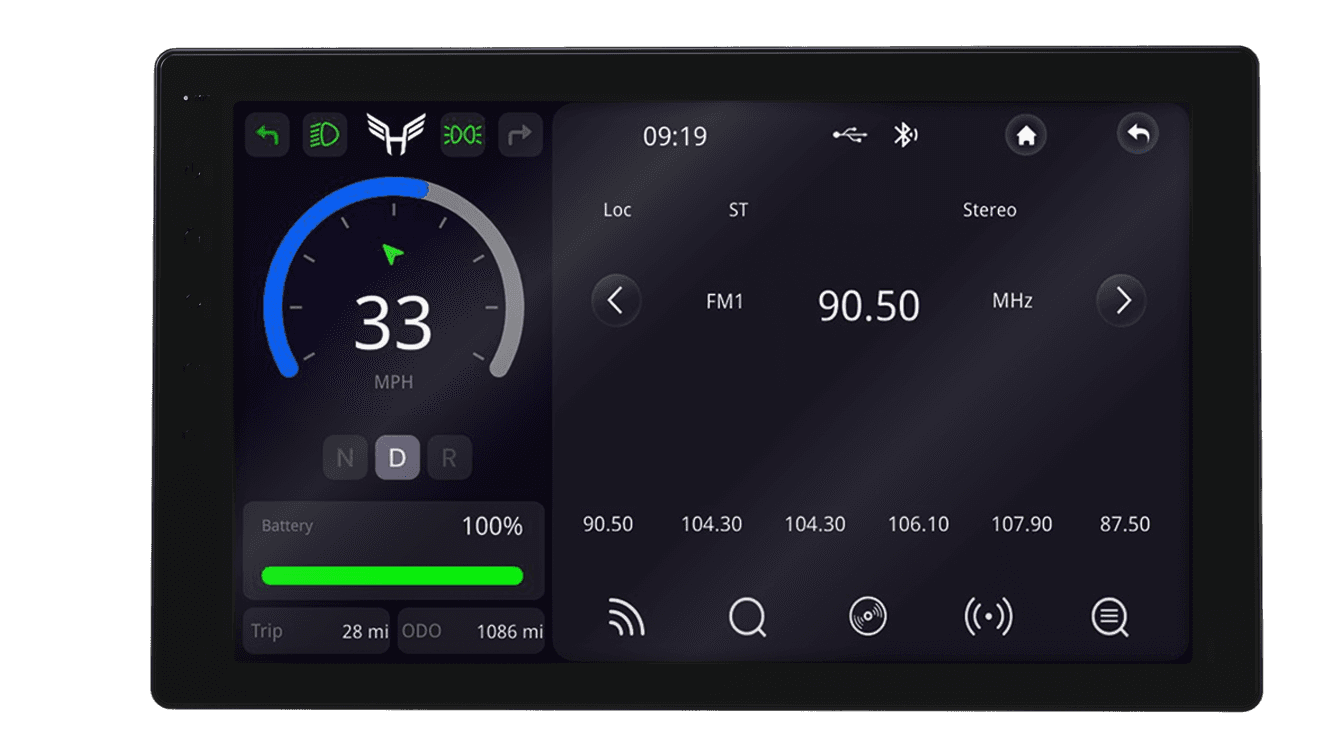

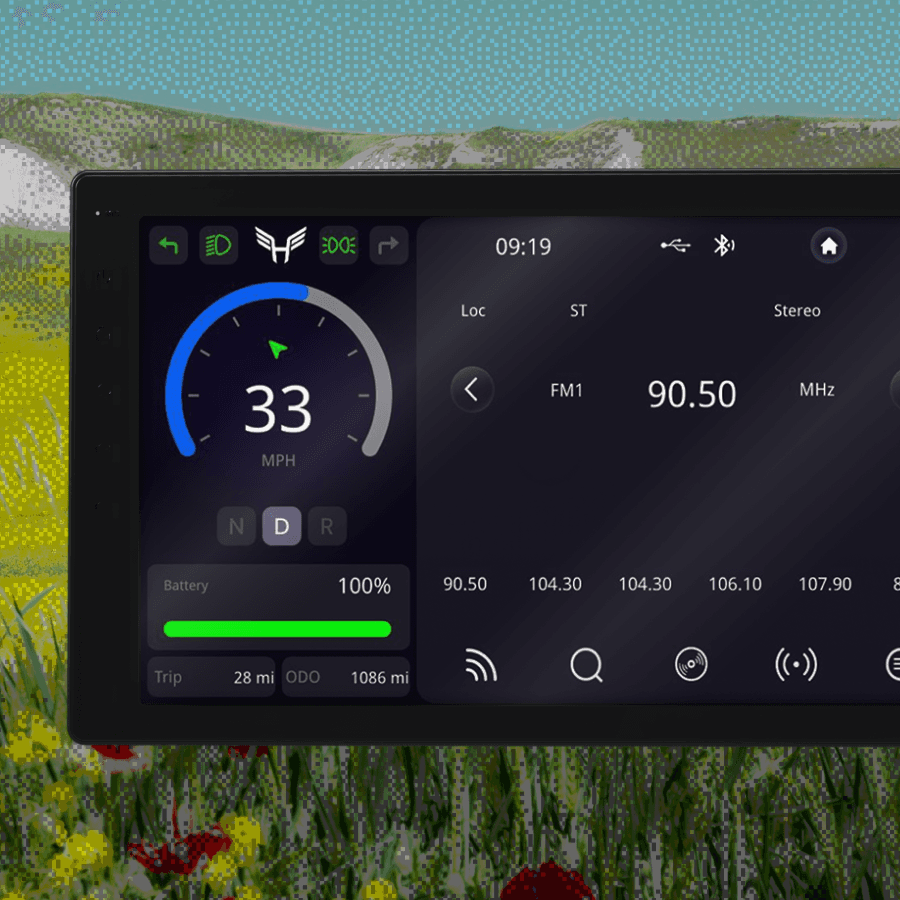

FM Radio & Bluetooth Audio
FM Radio & Bluetooth Audio
Listen to radio stations or stream music from your phone.
Listen to radio stations or stream music from your phone.
[03]
Hands-Free Calling
Make and receive calls safely via Bluetooth.
Make and receive calls safely via Bluetooth.
[04]
Dark And Light Mode
Customize the theme according to your needs.
Customize the theme according to your needs.
[05]
Rear View Camera Supportive controls
A rear-view camera is included and auto-activates on reverse.
A rear-view camera is included and auto-activates on reverse.
FAQs
Any Questions?
Any Questions?
Don't see your question here? Reach out to us and we'll get back to you asap.
Don't see your question here? Reach out to us and we'll get back to you asap.
Does Connex Display support wireless CarPlay?
Yes. Connex Display supports wireless Apple CarPlay and wireless Android Auto through a dedicated BLE channel. No cables required.
Is Connex Display available for individual purchase?
Connex Display is available through OEM partnerships only. We work directly with golf cart and LSV manufacturers to factory-install the display as part of their vehicles. Contact our sales team for OEM enquiries.
Can I white-label Connex Display for my brand?
Yes. Connex Display is fully white-label ready. We customize the boot screen, logo, colour scheme. Other than custom functionality/Features specific to the OEM can be programmed to. Especially features like on touch on/off.
Does the display show speed and battery level?
Yes. The real-time dashboard shows speed, gear position (Neutral, Drive, Reverse), battery percentage, trip distance, and odometer.
Does it include a rear-view camera?
Yes. A rear-view camera is included in every unit and automatically activates when the vehicle is shifted into reverse.
What apps can riders use on Connex Display?
Through wireless CarPlay and Android Auto, riders can access 20+ apps including Spotify, Google Maps, Waze, WhatsApp, and more. The display also has built-in FM radio and Bluetooth audio.
How does Connex Display integrate with the vehicle?
Connex Display is plug-and-play with CAN bus support for vehicle data integration. For OEM partners, we handle full integration into the vehicle dashboard during assembling.
How is the Connex Display different from the Navitas 10” Display?
Connex Display offers wireless CarPlay/Android Auto (Navitas requires wired), dual independent BLE channels, a proprietary Connex Linux OS, and full white-label OEM support. It is factory-installed by brands like Honor LSV — not sold as an aftermarket upgrade.
Does Connex Display support wireless CarPlay?
Yes. Connex Display supports wireless Apple CarPlay and wireless Android Auto through a dedicated BLE channel. No cables required.
Is Connex Display available for individual purchase?
Connex Display is available through OEM partnerships only. We work directly with golf cart and LSV manufacturers to factory-install the display as part of their vehicles. Contact our sales team for OEM enquiries.
Can I white-label Connex Display for my brand?
Yes. Connex Display is fully white-label ready. We customize the boot screen, logo, colour scheme. Other than custom functionality/Features specific to the OEM can be programmed to. Especially features like on touch on/off.
Does the display show speed and battery level?
Yes. The real-time dashboard shows speed, gear position (Neutral, Drive, Reverse), battery percentage, trip distance, and odometer.
Does it include a rear-view camera?
Yes. A rear-view camera is included in every unit and automatically activates when the vehicle is shifted into reverse.
What apps can riders use on Connex Display?
Through wireless CarPlay and Android Auto, riders can access 20+ apps including Spotify, Google Maps, Waze, WhatsApp, and more. The display also has built-in FM radio and Bluetooth audio.
How does Connex Display integrate with the vehicle?
Connex Display is plug-and-play with CAN bus support for vehicle data integration. For OEM partners, we handle full integration into the vehicle dashboard during assembling.
How is the Connex Display different from the Navitas 10” Display?
Connex Display offers wireless CarPlay/Android Auto (Navitas requires wired), dual independent BLE channels, a proprietary Connex Linux OS, and full white-label OEM support. It is factory-installed by brands like Honor LSV — not sold as an aftermarket upgrade.
